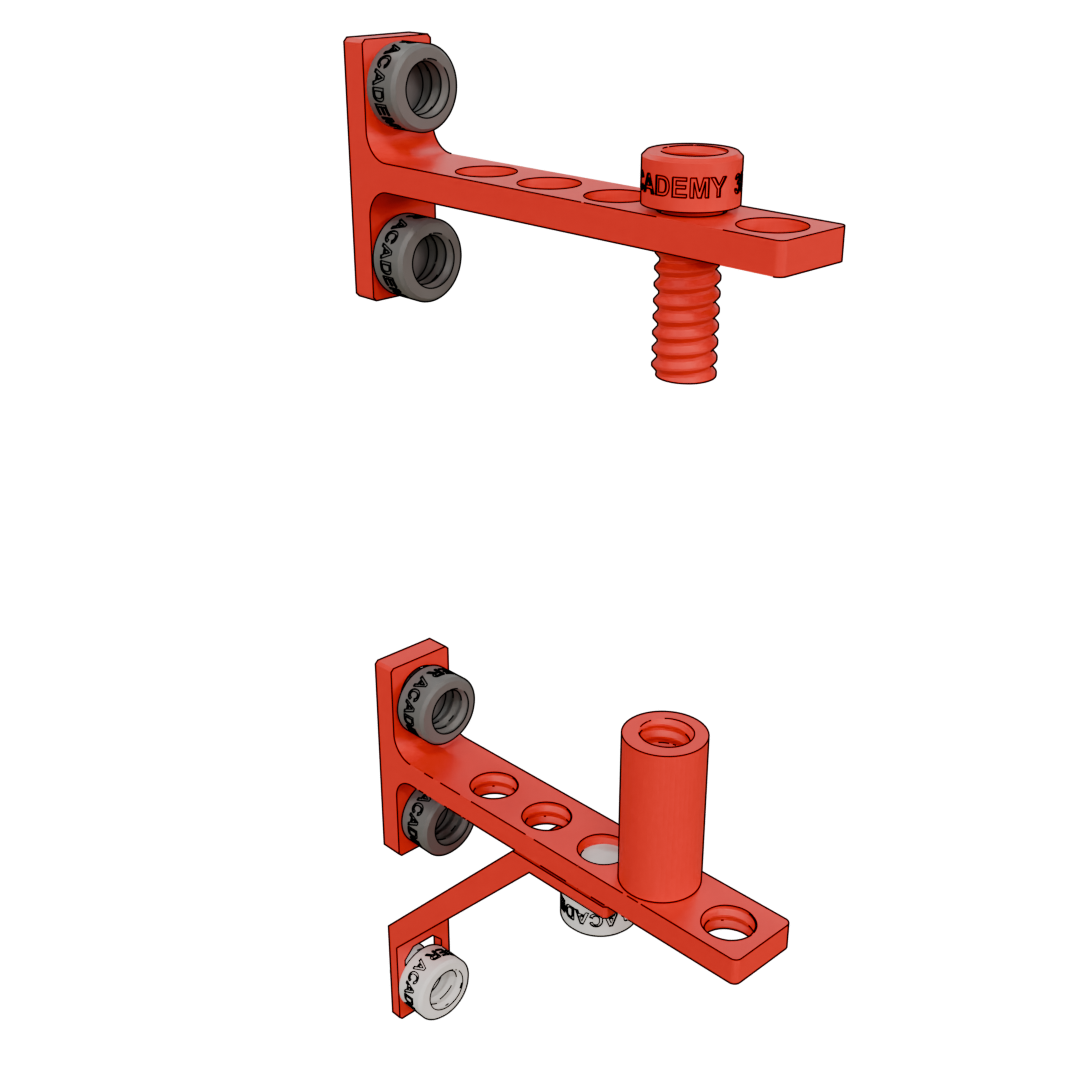

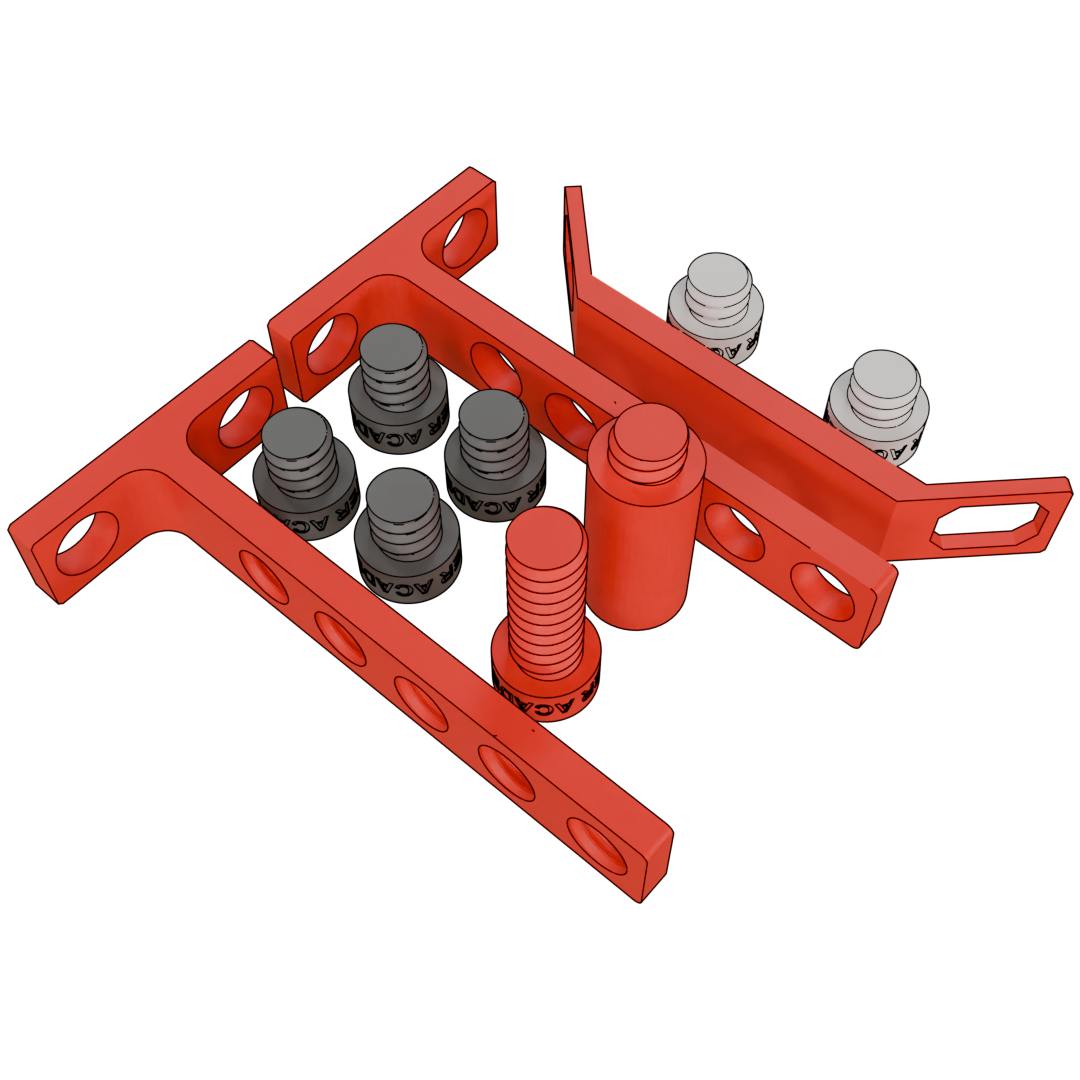

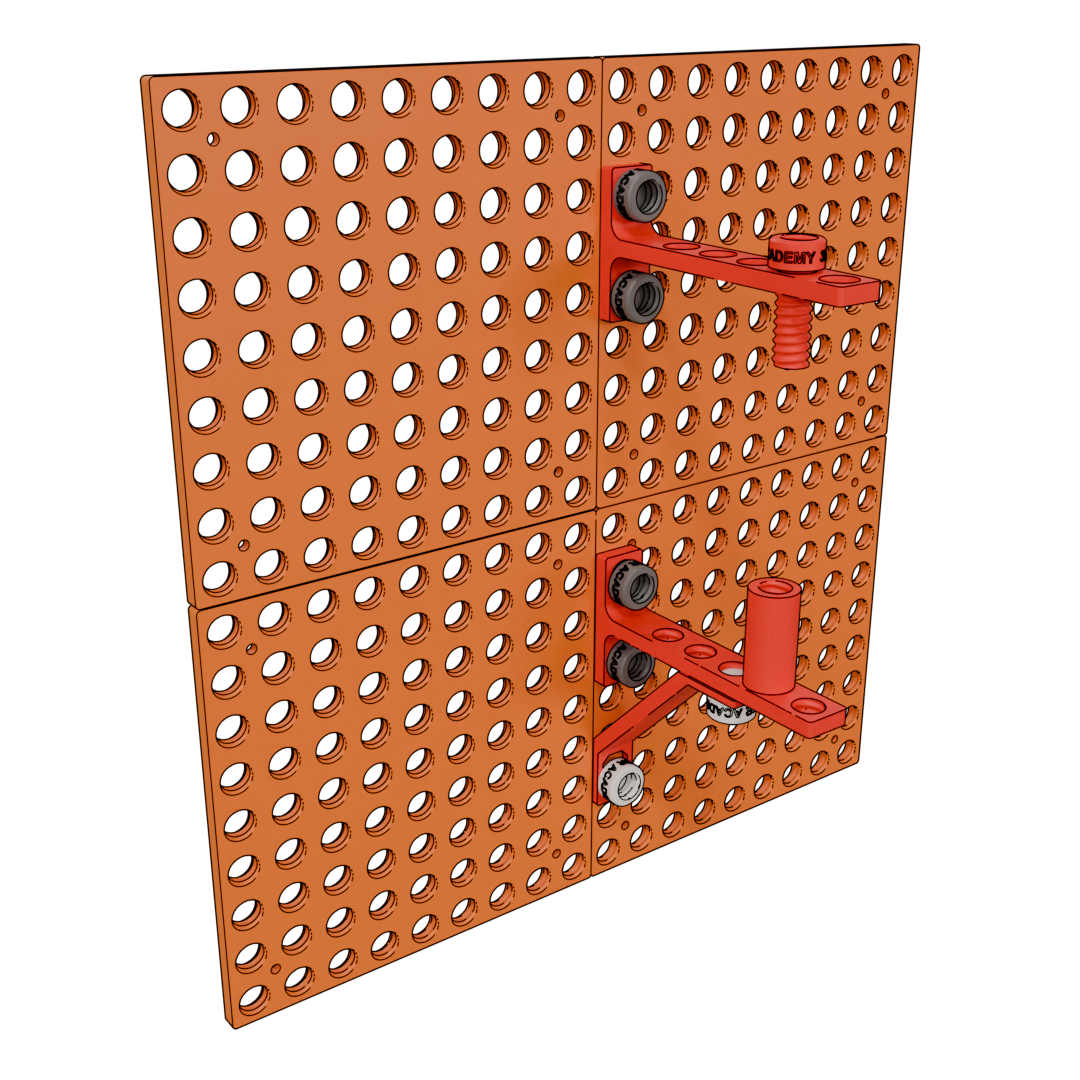

Parts List and build guide:

Four 10mm thread length threaded pegs to attach the t-brackets (shown in grey): THRHD12xTHR10

Two 14mm thread length threaded pegs to attach the brace (shown in white): THRHD12xTHR14

One 96mm Angle Bracket to brace to bottom bracket: 96mm Angle Bracket

One non threaded t-bracket (top bracket) to hold the longer threaded peg that will act as a easy to remove pin: 1x5 T-Shaped Bracket Non-Threaded

One braced threaded t-bracket (bottom bracket): 1x5 T-Shaped Bracket Theaded

One long threaded peg that will be used as a pin in the top bracket: THRHD12xTHR42

One long 48mm peg for the bottom bracket: 48mm Peg

Click image to instantly download pre-arranged build plate:

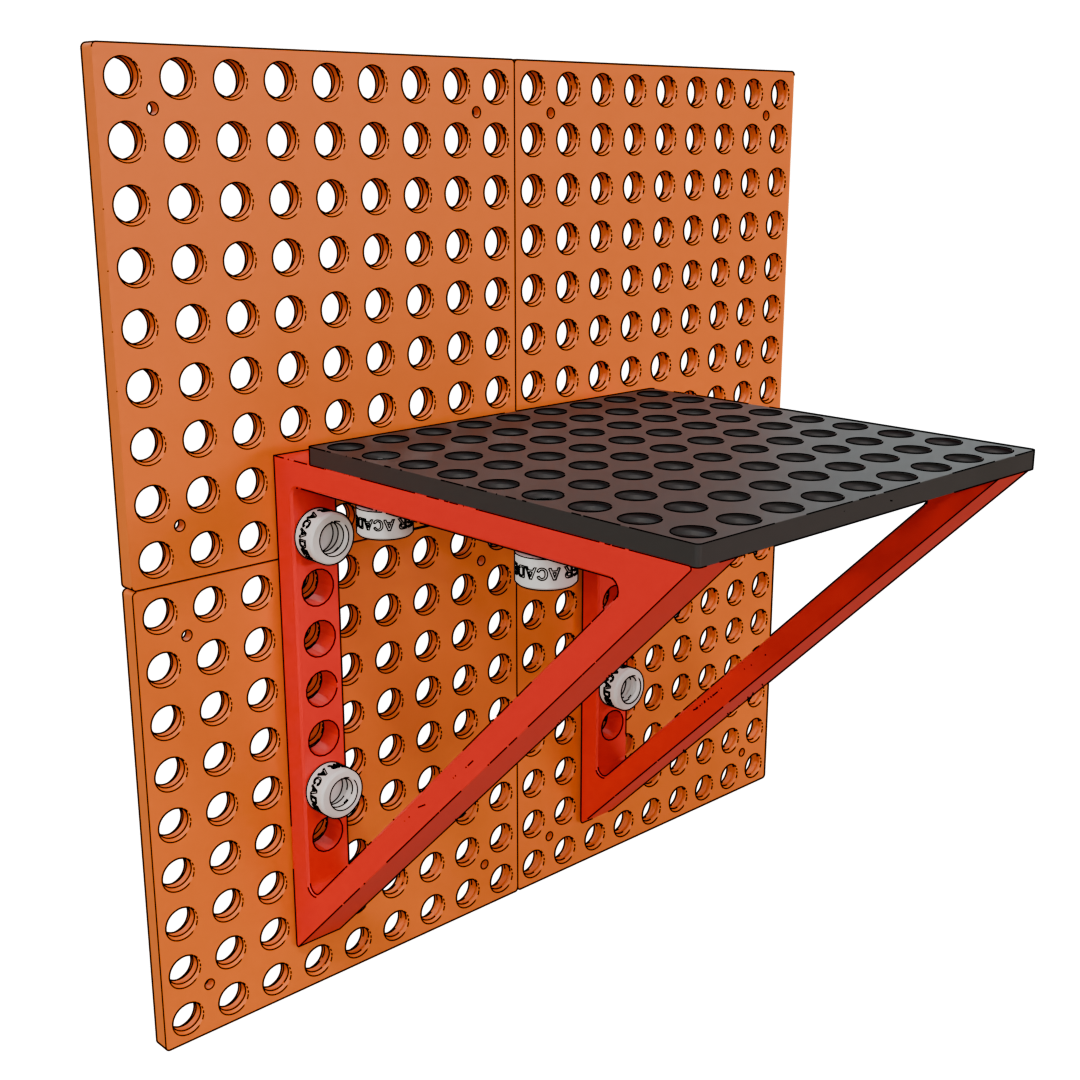

Parts List and build guide:

Eight 18mm thread length threaded pegs to attach brackets (shown in white): THRHD12xTHR18

Two large brackets (shown in red): Large Bracket (240mm x 24mm wide x 12mm thick)

One 9x9 threaded board (8mm thick): 9x9 8mm Threaded Board

Click image to instantly download pre-arranged build plate:

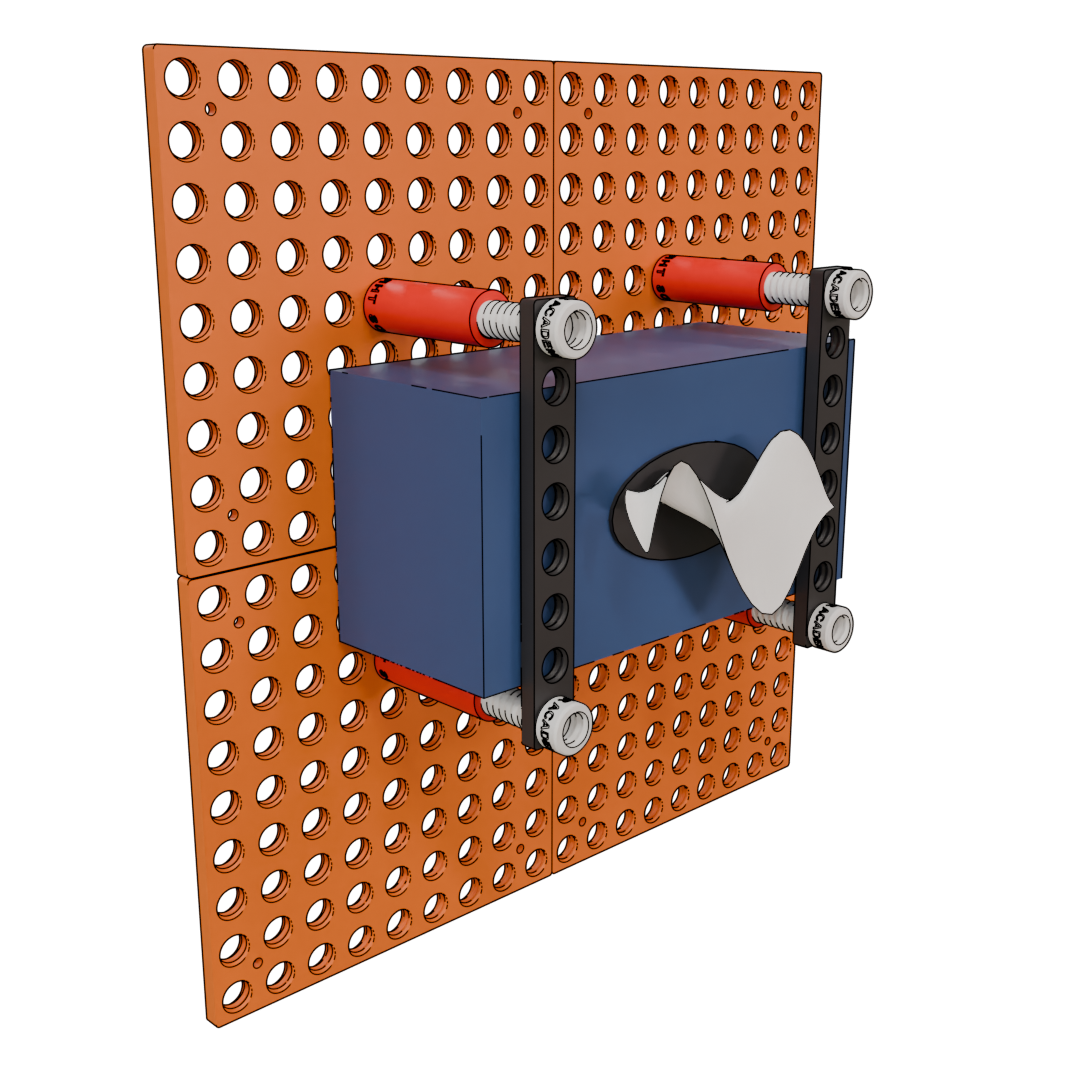

Parts List and build guide (Option 1 - boxes thicker than 76mm / 3"):

Four deep head special screws (shown in red): THRHD72xTHR08

Four long threaded screws (shown in white): THRHD12xTHR70

Two non-threaded 1x8 boards 4mm thick (double up for extra strength): 1x8 4mm Non-Threaded Board

Parts List and build guide (Option 2 - boxes thinner than 76mm / 3"):

Four deep head special screws (shown in red): THRHD48xTHR08

Four long threaded screws (shown in white): THRHD12xTHR60

Two non-threaded 1x8 boards 4mm thick (double up for extra strength): 1x8 4mm Non-Threaded Board

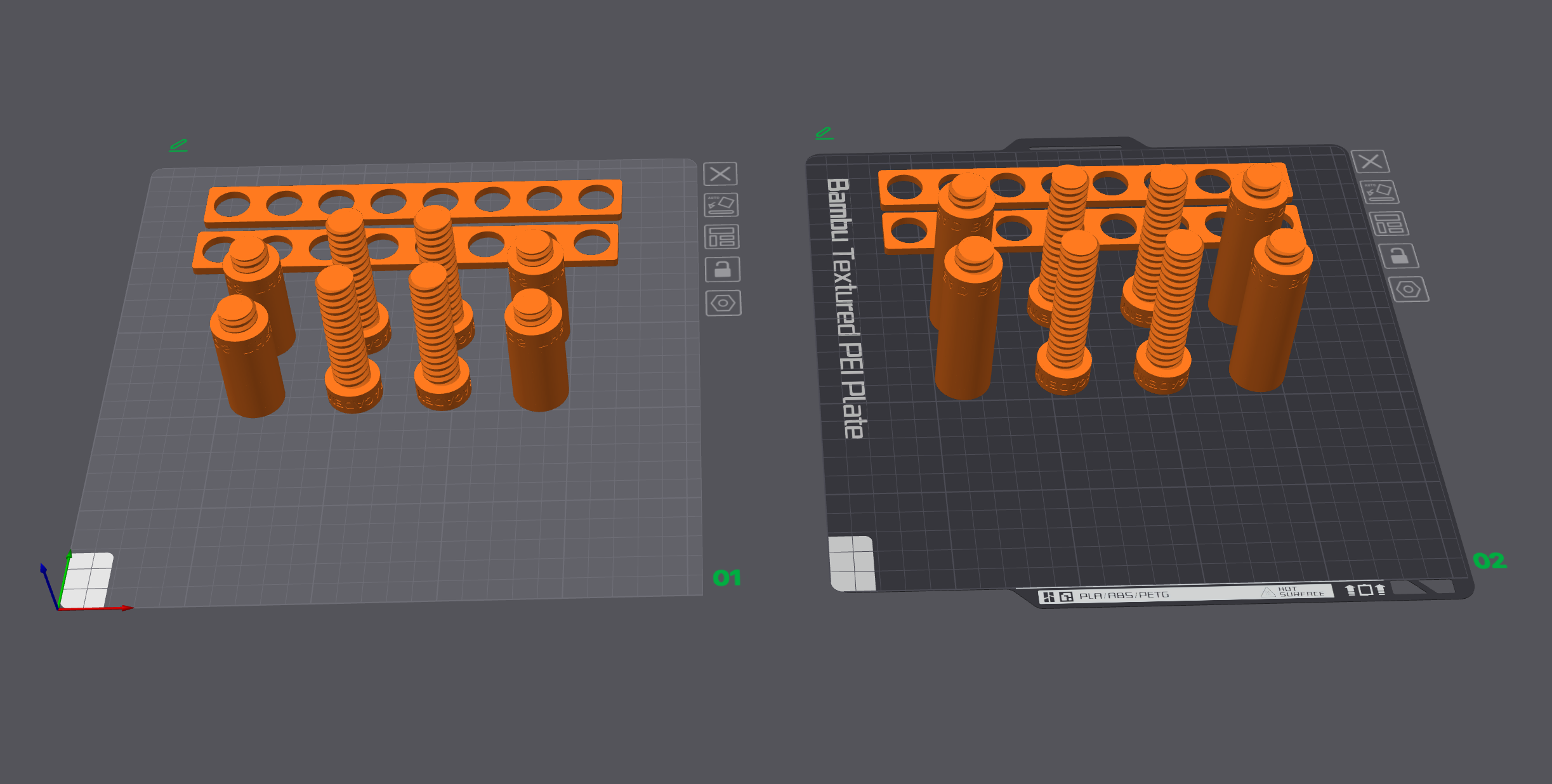

Click image to instantly download pre-arranged build plate:
